35mm Recessed Aluminium LED Profile with Flange – Linear Lighting Channel

Upgrade your linear lighting projects with this 35mm Recessed Aluminium LED Profile, engineered for efficient heat management and a premium architectural finish. Manufactured from 1.5mm thick aluminium, the profile ensures excellent heat dissipation and thermal conductivity, significantly extending the lifespan of LED strip lights.

Designed for custom linear light installations, this recessed aluminium channel features a flange design for clean, flush mounting in ceilings, walls, furniture, and joinery applications. The profile is supplied with a PC Opal White press-fit diffuser, delivering uniform light output while minimizing glare and LED spotting. (LED strip not included.)

Available in 250cm and 500cm lengths, this aluminium profile supports multiple LED strip types, making it ideal for residential, commercial, and architectural lighting projects.

Key Specifications

• Profile Type: 35mm Recessed Aluminium LED Profile with Flange

• Aluminium Thickness: 1.5mm (High heat dissipation & thermal conductivity)

• Lengths Available: 250cm & 500cm

• Diffuser: PC Opal White Diffuser – Pressing Type

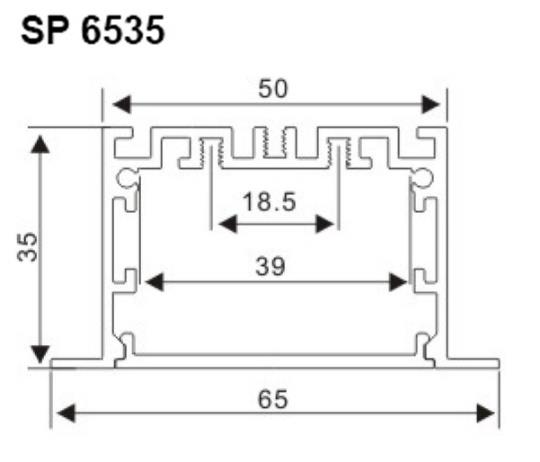

• Dimensions: 50 × 35mm

• Flange Width: 65mm

• Accessories (Optional):

  • End Caps with Hole

  • End Caps without Hole

  • Mounting Clips
    (End caps and clips excluded)

Compatible LED Strip Options

• 2835 LED Strip – 120 LEDs/M (Multirow)

• 3528 LED Strip – 120 LEDs/M (Multirow)

• COB LED Strip – Multirow

• 5050 LED Strip – 60 LEDs/M (Multirow)

Applications

• Recessed ceiling linear lighting

• Architectural & commercial lighting

• Joinery, cabinetry & furniture lighting

• Retail displays & office interiors

• Residential linear LED installations

Why Choose This Aluminium LED Profile?

✔ Superior heat dissipation for longer LED life
✔ Clean recessed finish with flange design
✔ Uniform, glare-free illumination
✔ Supports multiple LED strip types
✔ Ideal for custom linear lighting projects
